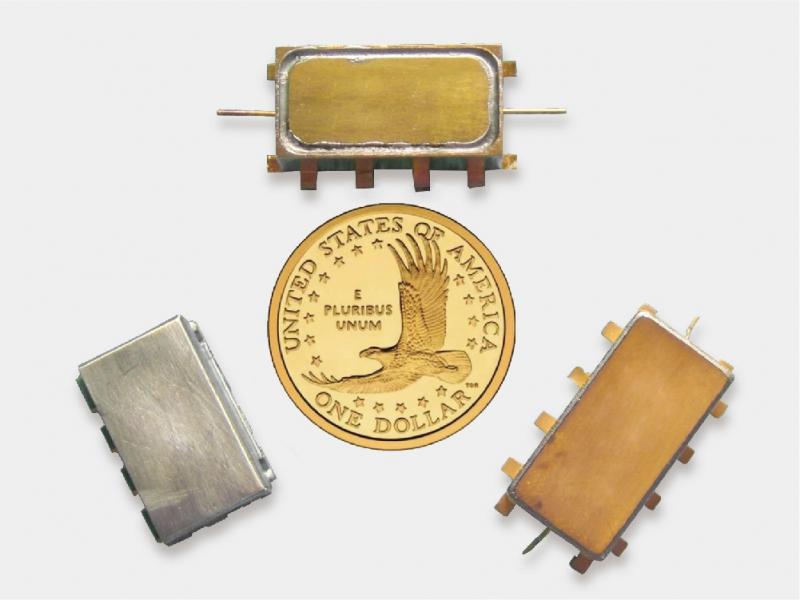

Small Size Dielectric Resonator Filter

Home Dielectric Resonator Filter

Small Size Dielectric Resonator Filter

Dielectric Resonator Surface Mount Filter

Small Size Dielectric Resonator Filter

Features:


  • - Small Volume
  • - High Rejection
  • - Low Insertion Loss
  • - Short Delivery Time
  • - Custom Design Available


  • Order(MOQ):

    1

  • Lead Time：

    6 weeks
Inquire Now
  • Product Details

Description

Such kind of filter is customized by INDEPENDENT RF as the definition. As RF filter company, more high frequency fitler can be ODM by INDEPENDENT RF as well.

Parameter

Available in 3-7 sections

3dB BW from 3% to 200%
Band-pass,High-pass,Low-pass,Band-stop
Frequency range:0.5MHz to 6GHz
Size:Length 10-20mm,Width 7-12mm,High 5-10mm
Custom RF Passive Components
INDEPENDENT RF can design various products tailored to customers' applications.
Only 3 steps to meet your RF passive component needs:
1. Specify your parameter requirements.
2. Independent RF provides the design solution.
3. Independent RF completes customized production.
