Description:

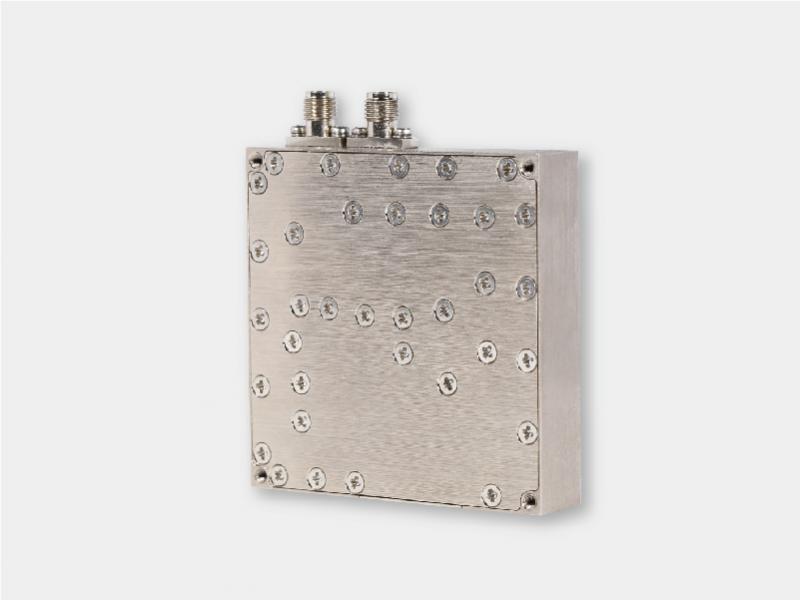

A frequency synthesizer is an electronic circuit or system that generates stable, programmable output frequency signals using a high-precision reference source (such as a crystal oscillator), replacing multiple independent oscillators. Its core modules include a reference oscillator, phase detector, loop filter, voltage-controlled oscillator, and programmable frequency divider.
Three Types:
Phase-Locked Loop (PLL): A mainstream technology suitable for high-frequency scenarios, featuring low phase noise.
Direct Digital Synthesis (DDS): Offers fast switching speed and high resolution but has limited bandwidth.
Hybrid Type: Combines the advantages of PLL and DDS, balancing performance and flexibility.
Typical Applications:
Wireless Communication: Local oscillator signal generation for base stations and mobile phones.
Radar Systems: Frequency source for frequency-hopping radars.
Test Instruments: Core component of signal generators.
Satellite Navigation: Clock synchronization for GPS receivers.
