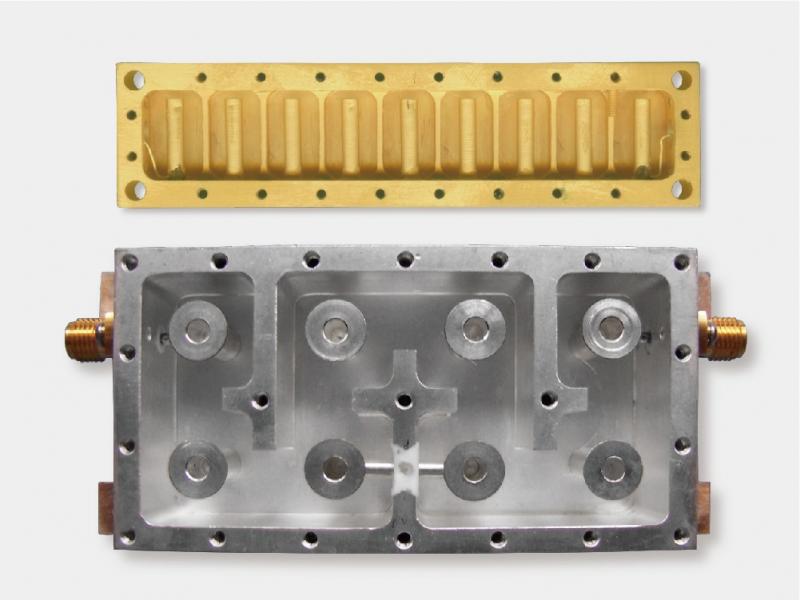

Cavity Coaxial Band Pass Filters

Home Cavity Filter

Cavity Coaxial Band Pass Filters

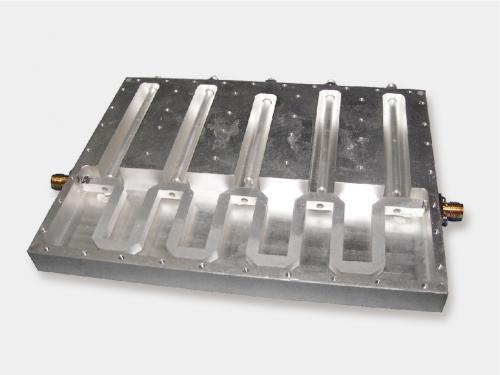

Customized Cavity Coaxial Bandpass Filter

Cavity Coaxial Band Pass Filters

Features:



  • - High Rejection
  • - Low Insertion Loss
  • - Short Delivery Time
  • - Custom Design Available



  • Order(MOQ):

    1

  • Lead Time：

    6 weeks
Inquire Now
  • Product Details

Description

Such kind of filter is customized by INDEPENDENT RF as the definition. As RF filter company, more high frequency fitler can be ODM by INDEPENDENT RF as well.

Parameter

Cross Couple Band-pass Filters

High “Q” design for narrow BW
Frequency range from 200MHz to 40GHz
3dB BW from 1% to 9%
Available in 2-11 sections

Size:Length 40-100mm,Width 12-30mm,High 9-22.5mm

Custom RF Passive Components
INDEPENDENT RF can design various products tailored to customers' applications.
Only 3 steps to meet your RF passive component needs:
1. Specify your parameter requirements.
2. Independent RF provides the design solution.
3. Independent RF completes customized production.
