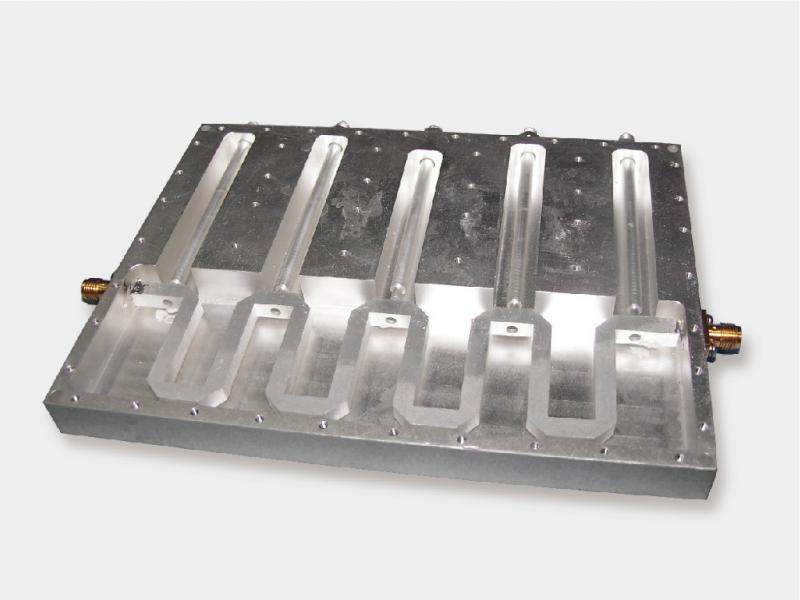

Cavity Bandreject Filters

Home Cavity Filter

Cavity Bandreject Filters

Customized Bandreject Filter

Cavity Bandreject Filters

Features:



  • - High Rejection
  • - Low Insertion Loss
  • - Short Delivery Time
  • - Custom Design Available



  • Order(MOQ):

    1

  • Lead Time：

    6 weeks
Inquire Now
  • Product Details

Description

Such kind of filter is customized by INDEPENDENT RF as the definition. As RF filter company, more high frequency fitler can be ODM by INDEPENDENT RF as well.

Parameter

Frequency range from 500MHz to 20GHz

50dB rejection BW from 0.5% to 5%
Available in 3-15 sections

0.05dB Chebyshev response

Custom RF Passive Components
INDEPENDENT RF can design various products tailored to customers' applications.
Only 3 steps to meet your RF passive component needs:
1. Specify your parameter requirements.
2. Independent RF provides the design solution.
3. Independent RF completes customized production.



Hot Tags : Cavity Notch Band Filter Cavity Bandstop Filter Customized Cavity Filter Customized Notch Band Filter Customized Bandstop Filter Cavity Bandreject Filters Manufacturer
