Cable

Home More RF Products Cable

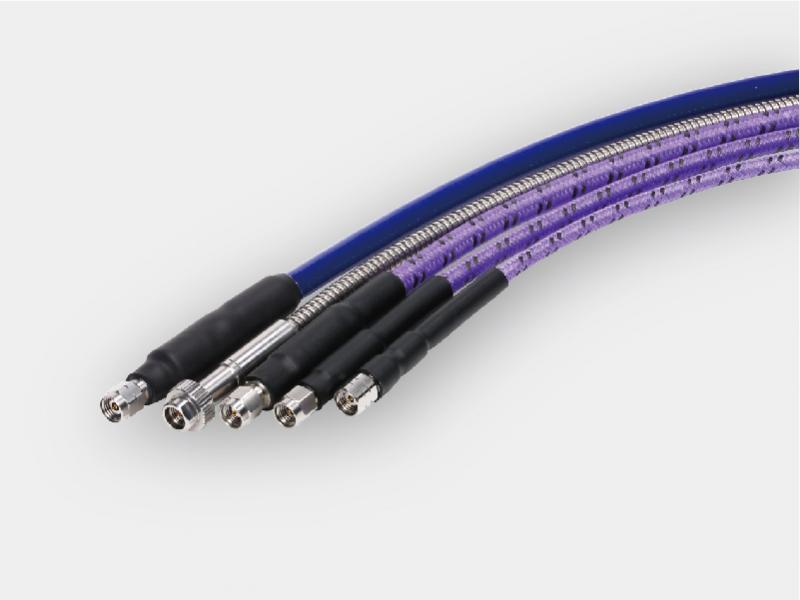

Cable

Cable

Cable

Features

‌

  • High-Frequency Performance‌: Supports DC-110GHz frequency range with low insertion loss (e.g., 0.1-0.5dB)‌
  • ‌Shielding Performance‌: Metal braided outer conductor provides high interference resistance‌
  • ‌Impedance Matching‌: Standard 50Ω (few 75Ω) ensures efficient signal transmission‌
  • ‌Mechanical Characteristics‌: Flexible/semi-flexible/semi-rigid types adapt to various installation requirements‌


  • Lead Time：

    3 to 7 days​
Inquire Now
  • Product Details
Description:


Radio frequency cables (coaxial cables) consist of a center conductor, insulation layer, outer conductor, and sheath, designed specifically for high-frequency signal transmission with a frequency range covering DC to 110 GHz. Their coaxial structure confines the electromagnetic field between the inner and outer conductors, reducing signal radiation and external interference.


Typical Applications


Communication Systems: Base station antenna connections, radar equipment feeders

Test and Measurement: Vector network analyzer calibration (e.g., VNA test cables)
Industrial Sector: Avionics, coal mine signal transmission (e.g., MSLYF(Y)VZ-50-9 cable)
